Forged Fittings
Leading Manufacturer, Exporter & Supplier of Forged Fittings in Mumbai, India
Ranfit Metal is a pioneer manufacturer & supplier of steel Forged Threaded fittings. Our forged pipe fittings are manufactured with utmost precision, ensuring that our range of products comply with international quality parameters. Available in various dimensions, these are highly acknowledged for superior strength, corrosion resistance and longer functionality.
Ranfit Metal offers a comprehensive range of forged pipe fittings that meet international standards such as ASTM, ASME, DIN, EN, and ISO. Our product portfolio includes Forged Elbows (45°, 90°, 180°), Forged Tees (Equal & Reducing), Forged Couplings (Full & Half), Forged Unions, Forged Crosses, Forged Caps, Socket Weld & Threaded Fittings etc. Available in a variety of pressure ratings (3000#, 6000#, 9000#) and customized as per client requirements.
When it comes to industrial piping systems and critical applications across industries like oil & gas, petrochemicals, power generation, and shipbuilding — forged fittings play a crucial role in ensuring leak-proof and durable connections. Apart from serving leading Indian industries, Ranfit Metal exports its forged fittings to several countries in the Middle East, Europe, Africa, and Southeast Asia — strengthening its position as a global supplier.
The company offers a comprehensive range of stainless steel, carbon steel, alloy steel, duplex, and super duplex Forged fittings to cater to diverse industrial needs. We ensures every product meets international quality standards like ASTM, ASME, ANSI, DIN, and EN.
Forged Fittings Specification
| Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|---|---|
| Size | 1/8” NB to 4” NB (Socket Weld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld Fittings, Screwed/Threaded Fittings, NPT, BSP, BSPT Fittings |
| Forms | 45 Degree Socket Weld Elbow, 90 Degree Socket Weld Elbow, 180 Degree Socket Weld Elbow, 45 Degree Threaded Forged Elbow, 90 Degree Forged Threaded Elbow, Socket Weld Tee, Socket Weld Coupling, SS Socket Weld Cross, SS Socket Weld Plug, SS Socket Weld Bushing, SS Forged Socket Weld Cap, Socket Weld Union, Socket Weld Half Coupling, Socket Weld Full Coupling, Reducing Coupling, Reducer Insert, Tee Straight, etc. |
Available Types of Forged Fittings

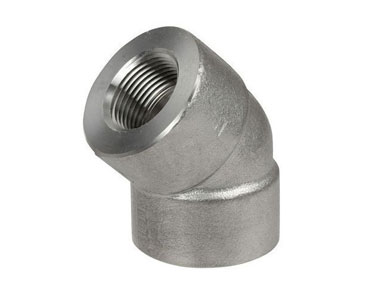

Forged 45 Degree Elbow

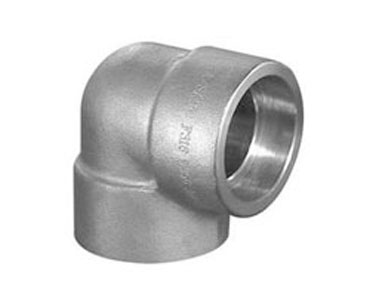

Forged 90 Degree Elbow

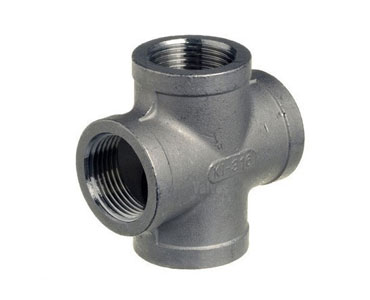

Forged Socket Weld Cross

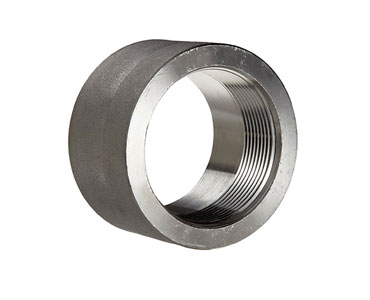

Forged Socket Weld Half Coupling

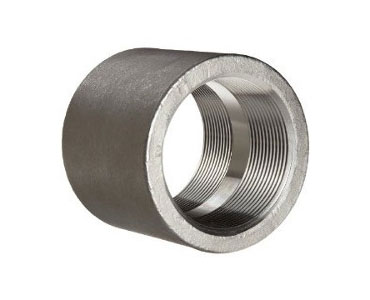

Forged Socket Weld Full Coupling

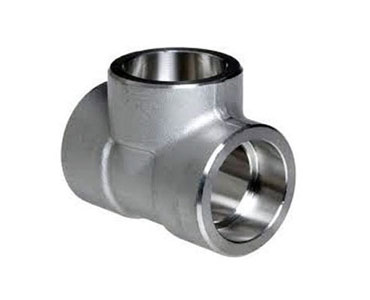

Forged Socket Weld Tee

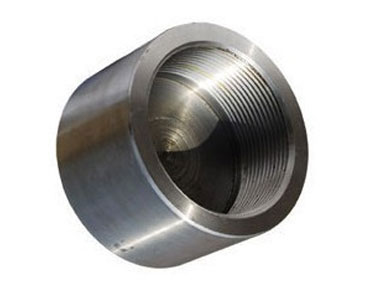

Forged Socket Weld Cap

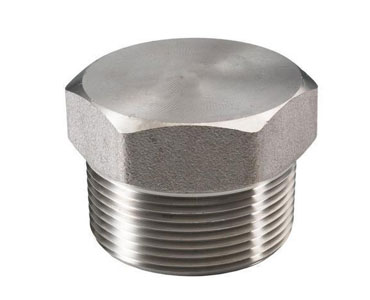

Forged Threaded / Screwed Hex Plug

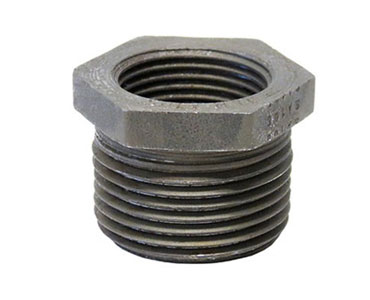

Forged Threaded Bushing

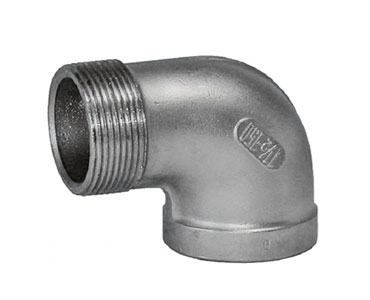

Forged Threaded Street Elbow

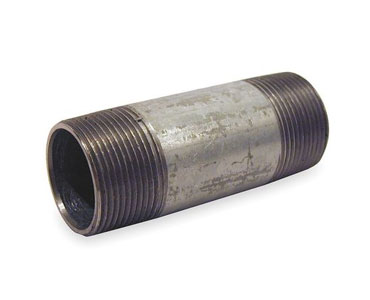

Threaded / Screwed Pipe Nipple

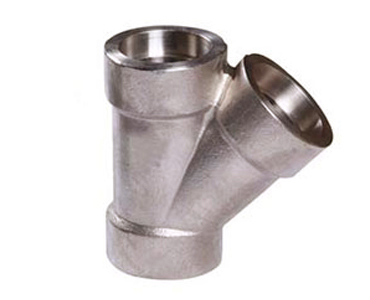

Socket Weld Lateral Outlet

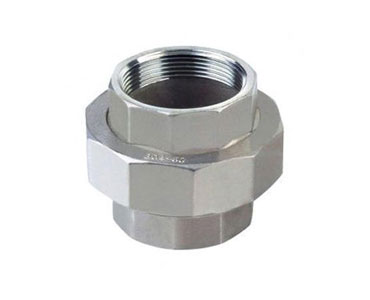

Forged Threaded / Screwed Union

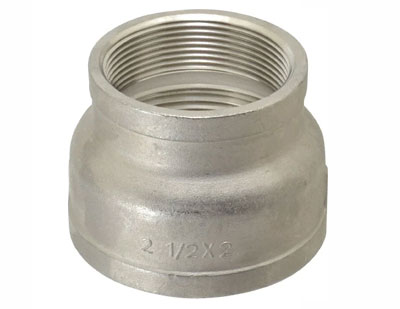

Forged Threaded Eccentric Reducer

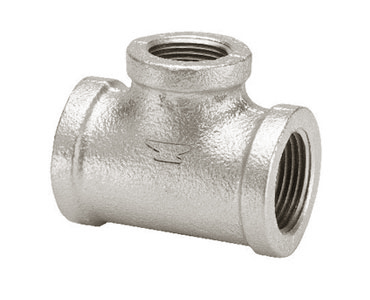

Forged Threaded Reducing Tee

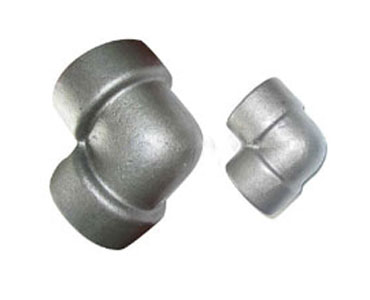

Forged Socketweld Pipe Elbow
Forged Fittings Material & Grades
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Duplex/Super Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon Steel | ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 |
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Molybdenum | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum |
| Cobalt | Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21 |
| Niobium | ASTM B394, R04200 R04210 |
| Nimonic | Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc |
| Tungsten | W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten |
| Nichrome | Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc |
| Magnesium | Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc. |
| Tantalum | Tantalum - Grade 1. |
| Monel | Monel 400, Monel k500 |
| MU-METAL | MU-METAL |
| Zirconium | Zirconium 702, Zirconium 705,Zirconium 705, Zirconium-2, Zirconium-4 |
| Beryllium Copper | Alloy 25 UNSC17200 |
| Aluminium | 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175 |
| Copper Alloys | C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000 |
Forged Fittings Dimension Chart
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | ASME B16.9 Elbows and Tees | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 Reducers | ASME B16.9 Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Manufacturing Standards of Threaded Fittings
| ASTM/ASME | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Threaded Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Forged Fittings Class, Size & Wall Thickness
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
Connect With Us
If you're searching for a reliable partner for forged fittings, look no further than Ranfit Metal. Backed by experience, expertise, and a customer-centric approach, they continue to set benchmarks in the piping industry.
